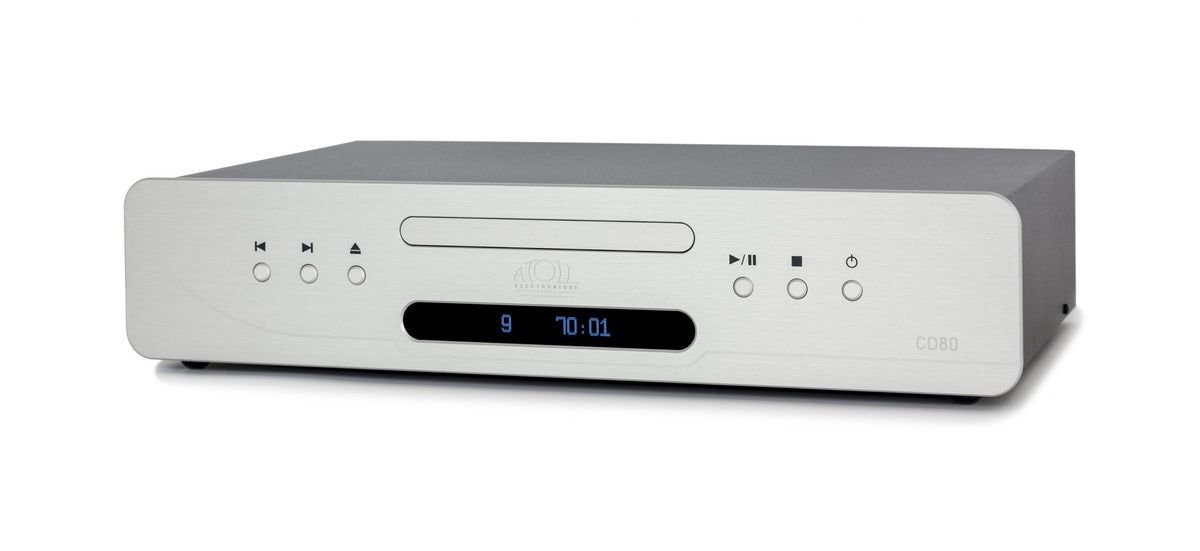

Atoll CD80 Evolution

The CD80 Evolution is a CD player from Atoll Electronique with a TEAC mechanism, a Burr-Brown PCM1791A DAC supplied by a low-noise converter supply, and a differential discrete class A output stage. An optional DC200 board adds USB-B (XMOS), coaxial and optical digital inputs.

Specifications

• DAC: Burr-Brown PCM1791A, 24-bit/192 kHz

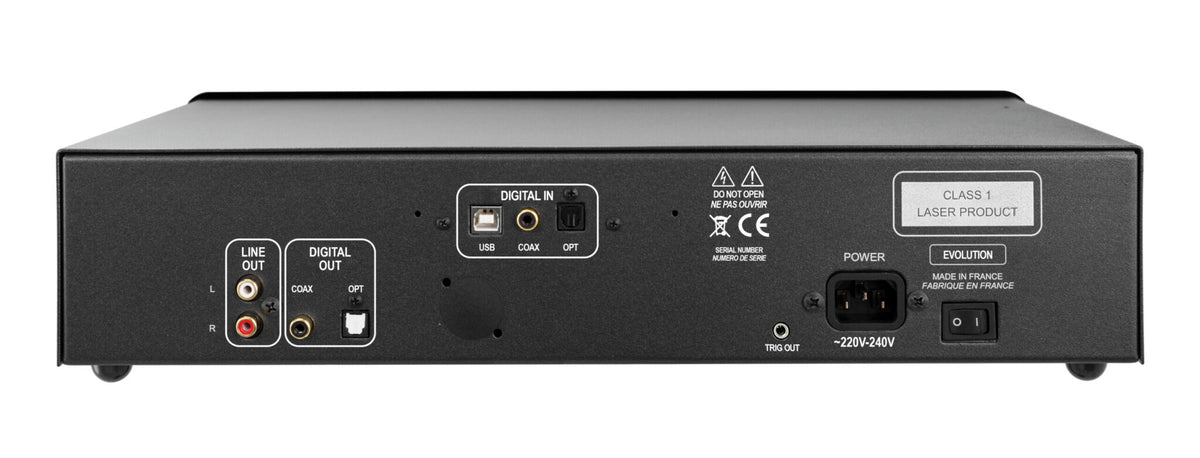

• Outputs: RCA analog, coaxial and optical digital, 12 V trigger
• Output level: 2.5 Vrms, 5.6 ohms
• Dynamic range and signal-to-noise: 113 dB
• Distortion: 0.001%
• Bandwidth: 5 Hz to 20 kHz
• Dimensions: 440 x 280 x 95 mm
• Weight: 6 kg
