Dan D'Agostino Pendulum Integrated Amplifier

At the heart of the Pendulum Integrated Amplifier lies the ingeniously re-engineered JFET input circuit topology, derived from the acclaimed Momentum C2 Preamplifier. This innovative technology upgrades the performance and precision of the entire platform, guaranteeing an immersive listening experience that transcends expectations from a component its size.

Driven by a custom toroidal transformer rated at 750VA and complemented by a nearly 25,000 μF capacitor bank, the Pendulum Integrated Amplifier delivers robust power output within a compact design. This advanced power supply ensures stable performance and minimizes distortion, allowing the amplifier to effortlessly drive challenging loudspeakers to their full potential.

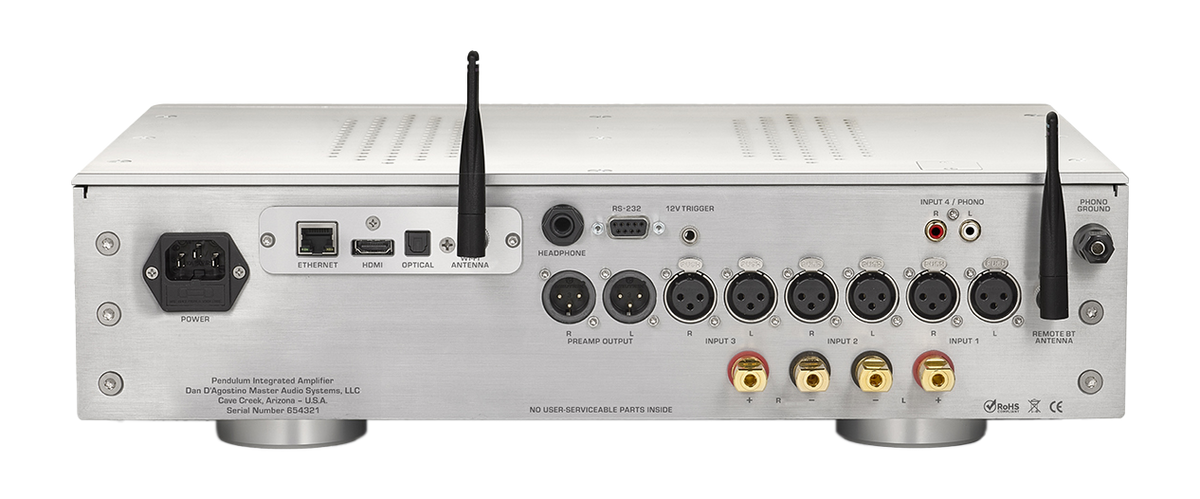

Seamless integration with a variety of audio sources is key to the Pendulum’s versatility. Analog connections include one single-ended input for turntable use and three balanced inputs, one with theater pass-through. Balanced preamplifier outputs allow for effortless integration of subwoofer(s), providing maximum flexibility to tailor your sound experience. Additionally, an optional moving-coil phono module accommodates turntable playback, catering to vinyl enthusiasts with exceptional performance.

The Pendulum Integrated Amplifier can be optionally equipped with a comprehensive suite of digital connections, ensuring seamless integration with modern audio sources and systems. Featuring optical and both RJ45 and Wi-Fi network connections, it offers unparalleled connectivity options. Notably, it is the first D’Agostino component to include an HDMI input with eARC functionality, simplifying integration into home entertainment systems.

Specifications

• Power: 120W per channel into 8 ohms, 240W into 4 ohms
• Frequency response: 20 Hz to 20 kHz, +/- 0.1 dB
• THD: 0.015% at 1 kHz, 120W per channel into 8 ohms
• Input impedance: 1 Mohm
• Output impedance: 0.1 ohms
• Analogue inputs: three balanced XLR pairs, one unbalanced RCA pair
• Digital inputs (optional): optical, Ethernet, Wi-Fi, HDMI eARC
• Phono (optional): 60 dB gain, loading at 47k, 1k, 500, 250, 100 and 50 ohms
• Outputs: one balanced XLR pair, 1/4 inch headphone, two pairs of binding posts
• Dimensions: 17.0 x 4.65 x 14.0 in
• Weight: 35 lbs
• Finishes: silver or black
