Moon 110LP v2 Phono Stage

Simaudio developed the 110LP v2 using technology from its more expensive phono preamplifiers, positioned as an affordable entry point into outboard phono stages.

Gain, EQ curve, resistance, and capacitance are all user configurable in seconds, so Simaudio built it to stay useful through a cartridge change rather than being tied to one setup.

Specifications

• Gain: 40, 50, 54, 60, 66dB
• Loading: resistance 10/100/475/47000 ohms, capacitance 0/100/330/430pF, end-user adjustable
• EQ: RIAA/IEC selectable

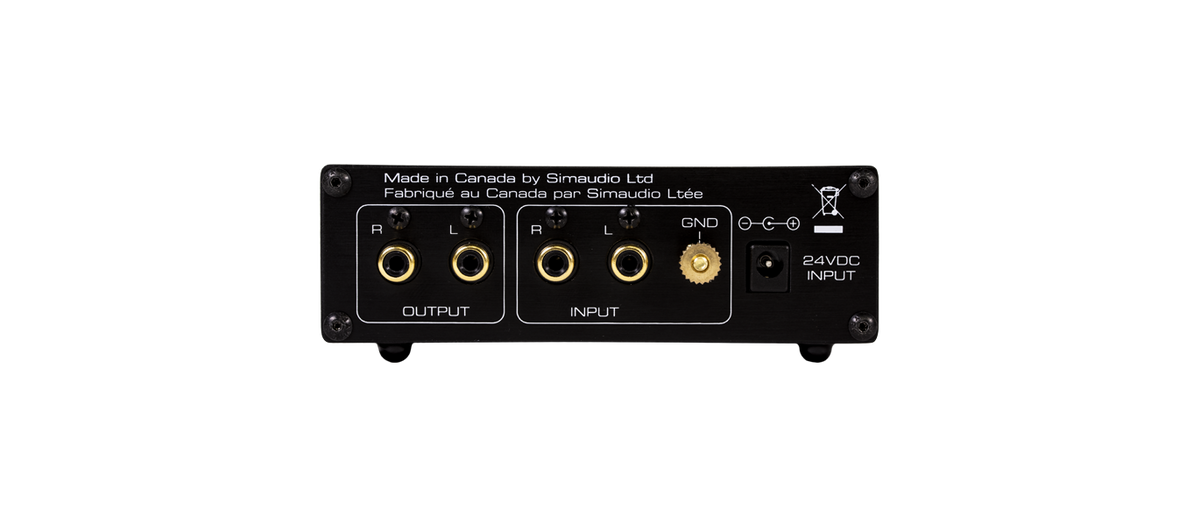

• Inputs/outputs: one pair RCA (single-ended) only
• THD: 0.002%
• IMD: 0.002%
• Signal-to-noise: 104dB at 40dB gain, 87dB at 60dB gain
• Frequency response: 20Hz-20kHz +/-0.5dB
• Power supply: external AC
• Dimensions: 5.0 in W x 1.65 in H x 6.5 in D
• Weight: 3.3 lbs (1.5 kg)
