Moon 461 Power Amplifier

The 461 is the most powerful model in the Compass Collection, an analog power amplifier Simaudio built for accuracy, control, and flexible system configurations.

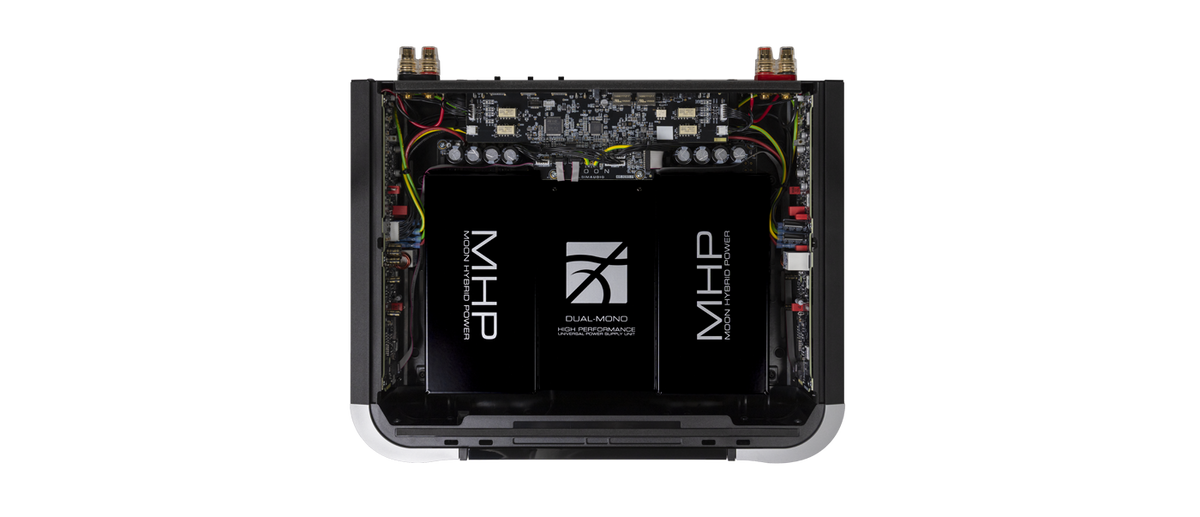

It adapts the MDCA architecture Simaudio pioneered in the North Collection down to a dual-mono layout with two separate MOON Hybrid Power supply modules, one per channel, to keep crosstalk low.

Specifications

• Power: 150W per channel at 8 ohms, 300W per channel at 4 ohms (stereo); 450W at 8 ohms (bridged mono)
• Topology: dual-mono MDCA, no global feedback, dual Moon Hybrid Power supplies
• THD+N: 0.005% at 1W, 0.003% at 150W
• IMD: 0.005%
• Signal-to-noise: 114dB
• Damping factor: 425
• Inputs: sensitivity 1V, impedance 22k ohms, gain 31dB

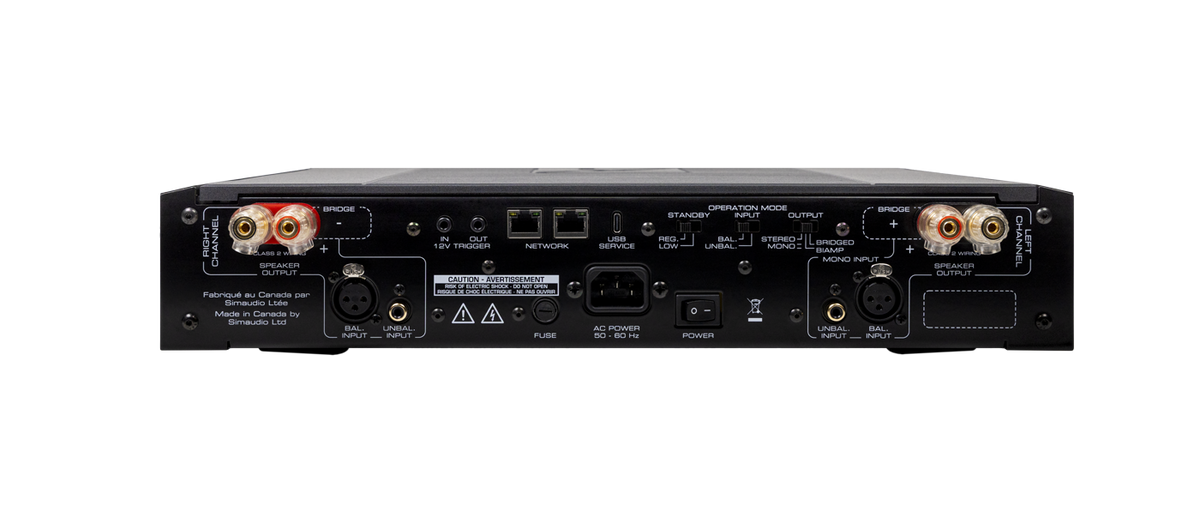

• Connectivity: MOONLink dual-Ethernet, USB service port
• Dimensions: 16.9 in W x 3.5 in H x 14.5 in D
• Weight: 24 lbs (11 kg)
• Finish: black chassis with black or silver bead-blasted cheeks
