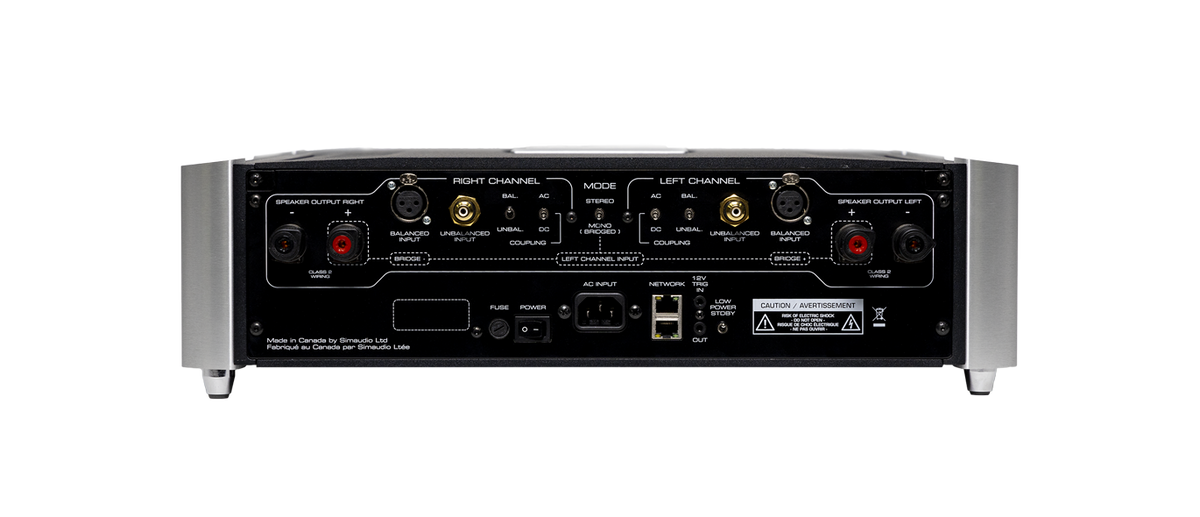

Moon 761 Power Amplifier

The 761 carries the same MDCA, dual-mono topology down from the 861, built to deliver a preamplifier's signal to the speakers with what Simaudio calls absolute transparency and finesse.

Two 700VA toroidal transformers and more than 150,000 microfarads of capacitance back a design that switches between stereo and bridged mono operation, and it connects to the 791 preamp over MOONLink.

Specifications

• Power: 200W per channel at 8 ohms, 400W per channel at 4 ohms (stereo); 600W at 8 ohms (mono)
• Topology: dual-mono MDCA, no global feedback
• THD+N: 0.002% at 1W, 0.001% at 200W
• IMD: 0.002%
• Signal-to-noise: 117dB
• Damping factor: 800
• Inputs: balanced XLR and unbalanced RCA, sensitivity 1.1V, impedance 47k ohms, gain 31dB
• Connectivity: stereo/mono switch
• Dimensions: 18.95 in W x 5.53 in H x 17.53 in D
• Weight: 79 lbs (36 kg)
