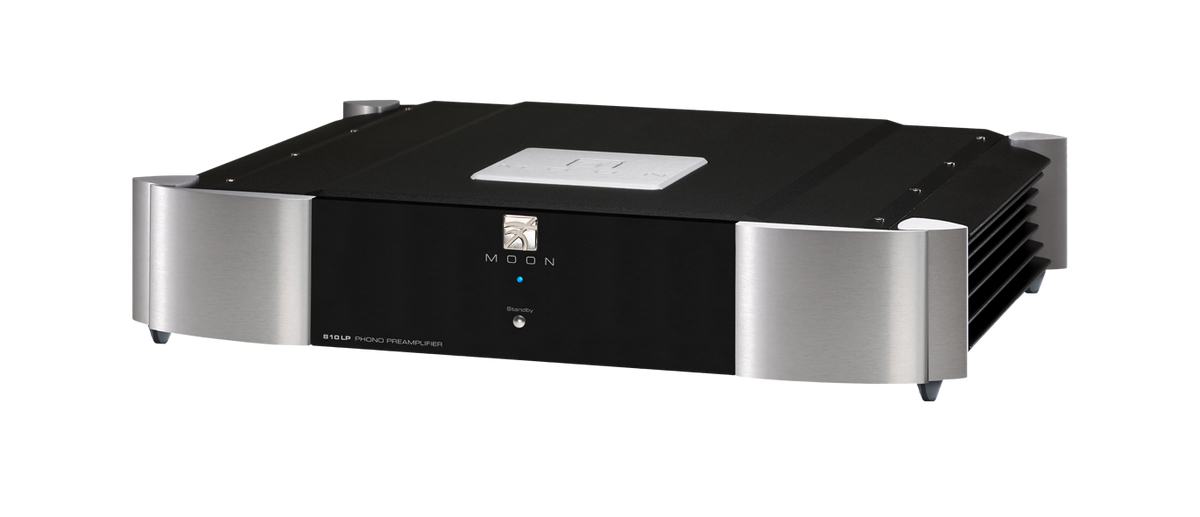

Moon 810LP Phono Stage

Simaudio built the 810LP as a purist reference phono stage, using a five point gel based floating suspension derived from the 850P's M-Octave technology to keep microphonics out of the signal.

Its i2DCf power regulation runs 24 filtering stages, feeding four layer pure copper circuit boards and metallized polypropylene film capacitors held to 1 percent tolerance, with an optional 820S external power supply available.

Specifications

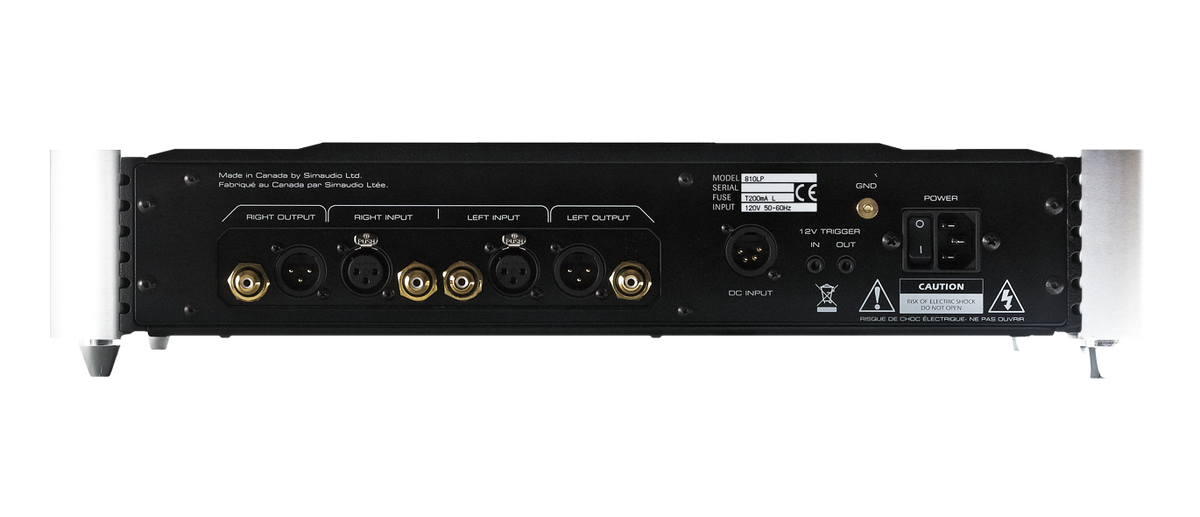

• Inputs/outputs: one pair XLR, one pair RCA
• Signal-to-noise: 115dBr at 40dB gain, 95dBr at 70dB gain
• THD: 0.0008%
• IMD: 0.001%
• Crosstalk: -106dB
• Frequency response: 20Hz-20kHz +/-0.1dB
• Output impedance: 50 ohms
• Dimensions: 18.75 in W x 4.0 in H x 16.8 in D
• Weight: 40 lbs (18 kg)
• Finish: Two-Tone, Black, Silver (availability varies by market)
