Moon 861 Power Amplifier

Simaudio builds the 861 around the same MDCA architecture and dual-mono approach used in the 888, in a stereo power amplifier meant to reproduce music without adding coloration.

Two 1,500VA toroidal transformers and 228,000 microfarads of capacitance feed a dual-mono layout with side mounted heatsinks and a MOONLink port for pairing with other North Collection components.

Specifications

• Power: 300W per channel at 8 ohms, 600W per channel at 4 ohms (stereo); 800W at 8 ohms (bridged mono)
• Topology: dual-mono MDCA, no global feedback
• THD+N: 0.002% at 1W, 0.001% at 300W
• IMD: 0.002%
• Signal-to-noise: 119dB
• Crosstalk: -119dB
• Damping factor: 900
• Inputs: RCA and XLR, sensitivity 1.4V, impedance 47k ohms, gain 31dB

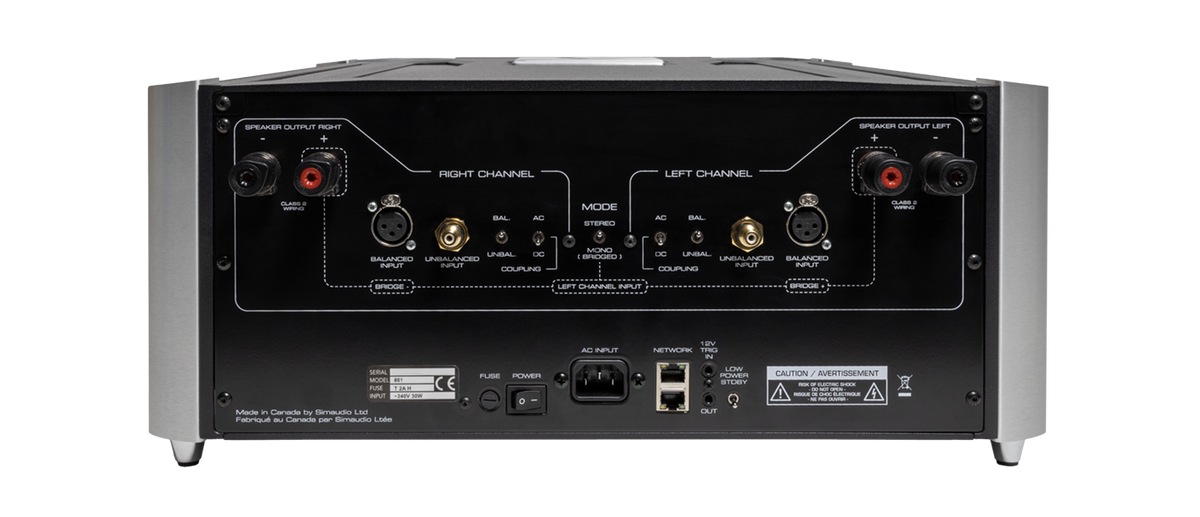

• Connectivity: MOONLink port, stereo/mono selector
• Dimensions: 18.95 in W x 8.26 in H x 24 in D
• Weight: 125 lbs (58 kg)
