Rogue Audio RH-5 Headphone Amplifier

The RH-5 is a tube headphone amplifier from Rogue Audio that can also be used as a preamplifier. It uses two 12AU7/ECC802 tubes in a mu-follower design and is rated at 3.5 watts into 32 ohms.

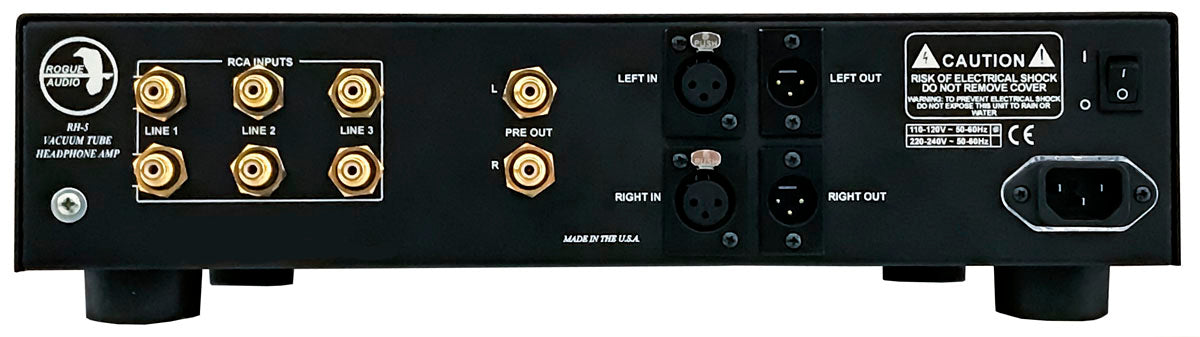

Headphone outputs are 3-pin and 4-pin balanced XLR plus two 1/4 inch jacks. Inputs are three RCA pairs and one balanced XLR pair, and an optional MM/MC phono board is available.

Specifications

• Tubes: 2 x 12AU7/ECC802, mu-follower design
• Power: 3.5 watts into 32 ohms
• Headphone outputs: 3-pin and 4-pin balanced XLR, 2 x 1/4 inch
• Inputs: 3 RCA, 1 balanced XLR
• Optional phono board: MM/MC, 43 dB and 58 dB gain
• Dimensions: 15 x 4 x 13.5 in (W x H x D)
• Weight: 19 lbs (8.6 kg), shipping 23 lbs
• Finish: black or silver
