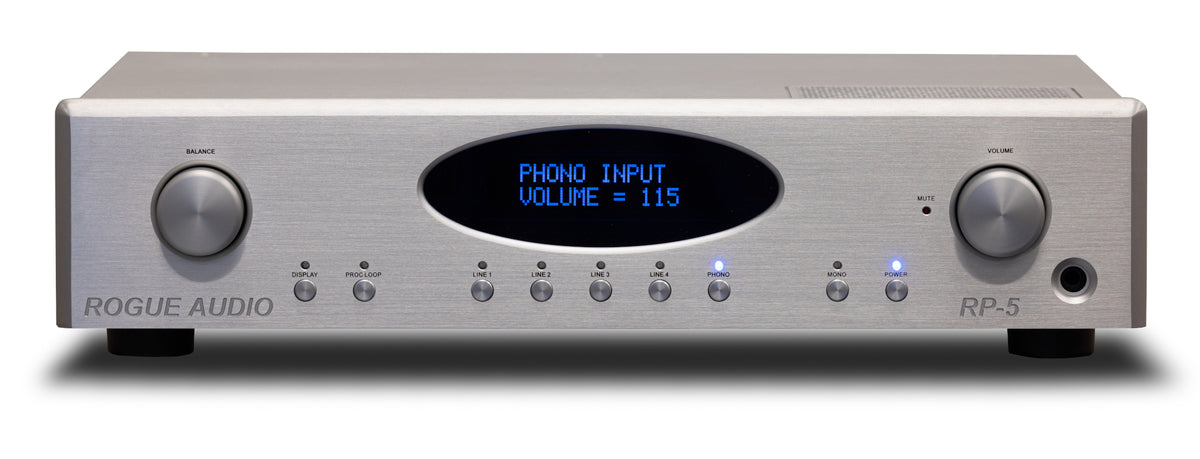

Rogue Audio RP-5 v2 Preamplifier

The RP-5 v2 is a four-tube preamplifier from Rogue Audio using a 12AU7 mu-follower design, with a tube-based headphone amplifier. It has five pairs of inputs (line 1 to 4 plus phono, or line 1 to 5) and home theater bypass inputs.

The phono stage has gain settings of 43, 48, 57 and 65 dB with adjustable cartridge loading. Outputs are two variable pairs and one fixed pair, with a processor loop and a ten-function remote.

Specifications

• Tubes: 4 x 12AU7/ECC802, mu-follower design

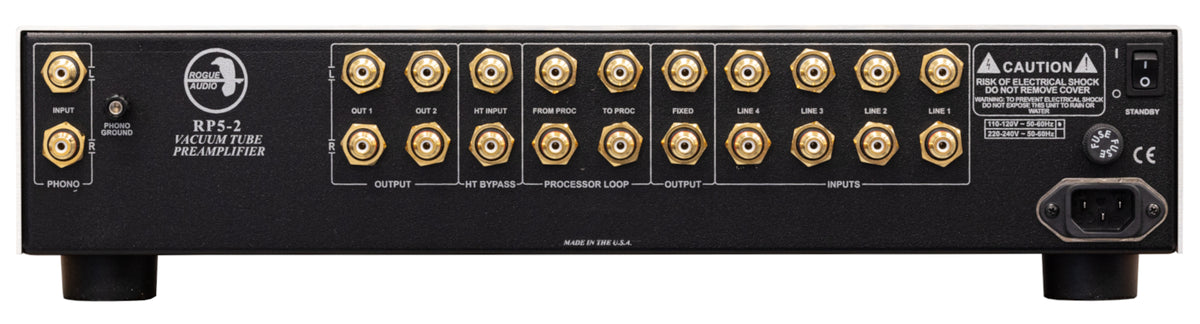

• Inputs: 5 pairs (line 1 to 4 plus phono, or line 1 to 5), home theater bypass
• Outputs: 2 variable, 1 fixed, processor loop
• Phono gain: 43, 48, 57 and 65 dB, adjustable loading
• Line-stage gain: 11 dB
• Frequency response: 5 Hz to 100 kHz, +/-1 dB
• THD: under 0.1%
• Remote: ten-function
• Dimensions: 18.5 x 4.5 x 17 in (W x H x D)
• Weight: 30 lbs (13.6 kg), shipping 35 lbs

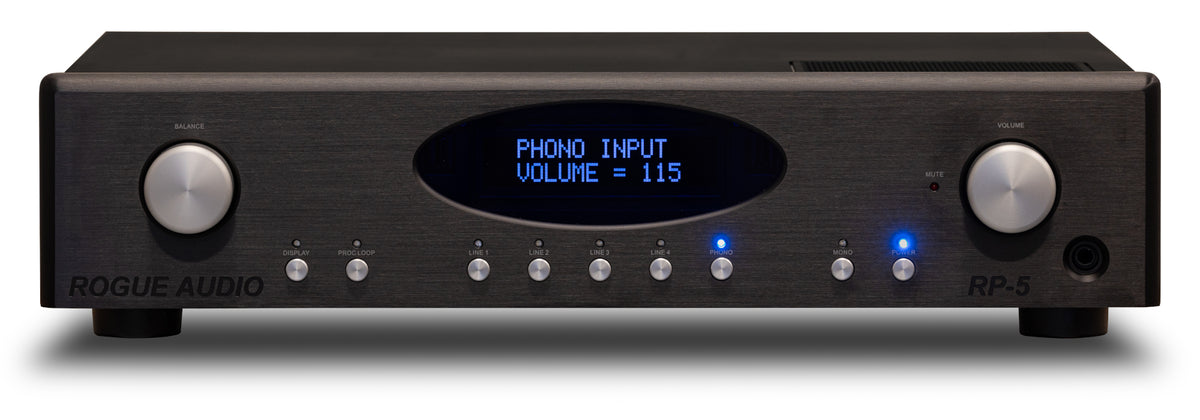

• Finish: black or silver
