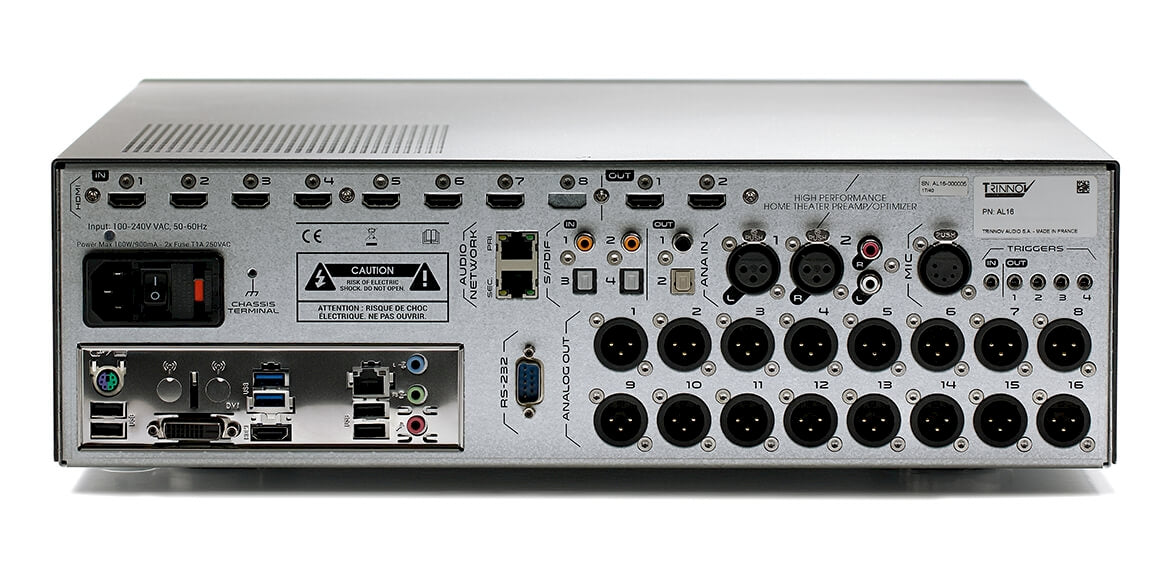

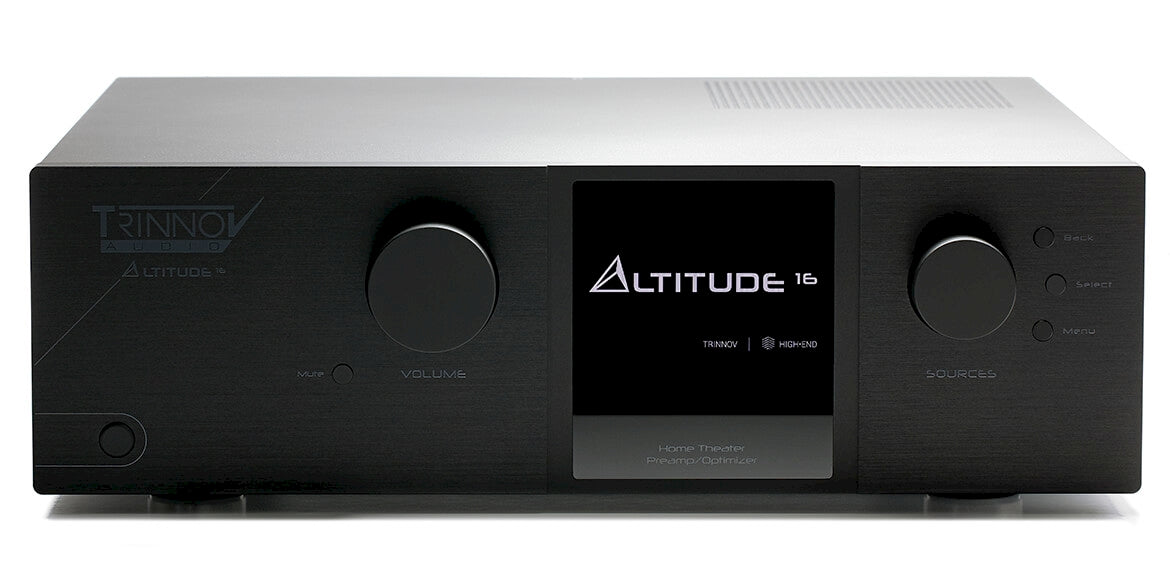

Trinnov Altitude 16 Immersive Sound Processor

The Altitude 16 is an immersive sound processor from Trinnov Audio. It decodes Dolby Atmos and DTS:X Pro up to 20 discrete channels and Auro-3D up to 13.1, with IMAX Enhanced support, and provides 16 balanced analog outputs plus 2 S/PDIF outputs.

Trinnov's Optimizer measures the room with the supplied 3D microphone and corrects the speaker and room response, with remapping and crossovers for active speakers. Processing is 64-bit floating point on an Intel multi-core processor.

The Altitude 16 has eight HDMI 2.1 inputs and two HDMI 2.1 outputs, with eARC on output 1, at 40 Gbps and up to 4K 120Hz or 8K 60Hz with HDR10, HDR10+, HLG and Dolby Vision. It carries a 5 year transferable warranty.

Specifications

• Channels: up to 20 discrete (16 analog outputs plus 2 S/PDIF outputs with converters)
• Dolby Atmos and DTS:X Pro: up to 20 discrete channels
• Auro-3D: up to 13.1, with Auromatic upmixing
• HDMI: 8 inputs, 2 outputs (HDMI 2.1), eARC on output 1
• HDMI bandwidth: 40 Gbps, 4K 120Hz / 8K 60Hz
• HDR: HDR10, HDR10+, HLG, Dolby Vision
• Streaming: Roon Ready, UPnP renderer
• Analog inputs: 1 balanced stereo XLR, 1 unbalanced stereo RCA
• Digital inputs: 4 S/PDIF (2 optical, 2 coaxial)
• Analog outputs: 16 balanced XLR
• Digital outputs: 2 S/PDIF (1 optical, 1 coaxial)
• ADC: 24-bit / 96 kHz, 115 dB SNR (A-weighted)
• DAC: 24-bit / 192 kHz, 115 dB SNR (A-weighted)
• Weight: 30.2 lbs (13.7 kg)
• Rack ears and feet included
• Warranty: 5 years, transferable
