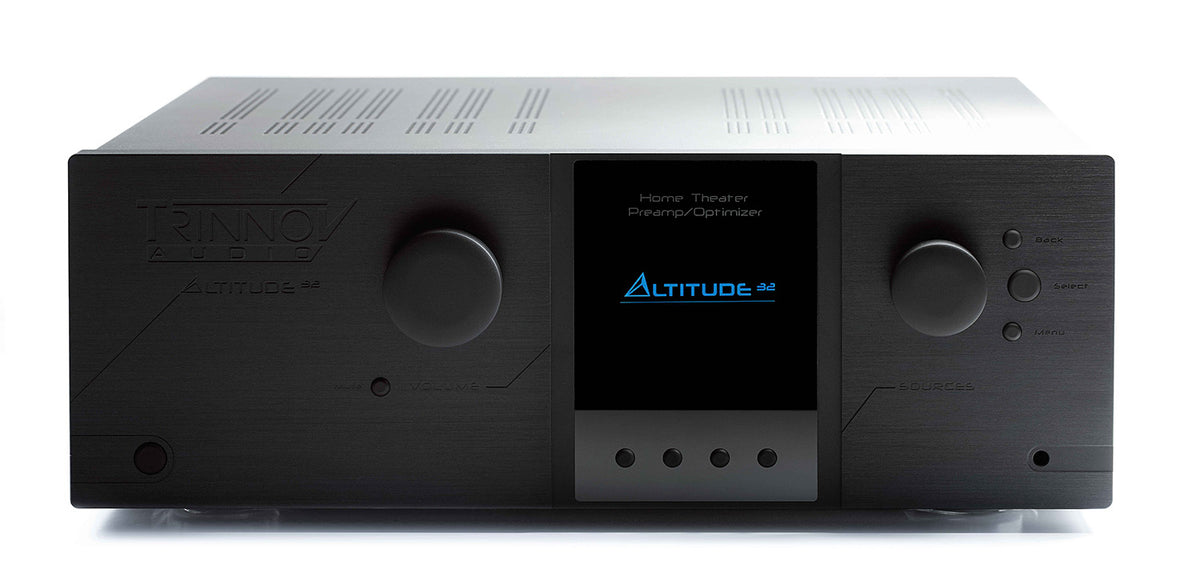

Trinnov Altitude 32 Immersive Sound Processor

The Altitude 32 is Trinnov Audio's flagship immersive sound processor for home theater. It is built in three configurations with 20, 28 or 36 channels of processing, and decodes Dolby Atmos up to 34 discrete channels, DTS:X Pro up to 30.2 and Auro-3D up to 13.1.

Trinnov's Optimizer uses the supplied 3D microphone to measure and correct the speakers and room, with remapping, bass management and 2, 3 and 4-way active crossovers. Processing is 64-bit floating point on an Intel multi-core processor, with separate power supplies for audio and processing.

It has eight HDMI 2.1 inputs and two HDMI 2.1 outputs, with eARC on output 1, and supports Roon. The Altitude48ext extension chassis adds processing for layouts beyond 32 channels. Finish is black, with silver optional. It carries a 5 year transferable warranty.

Specifications

• Configurations: 816 (20-channel processing, 16 analog outputs), 1624 (28-channel, 24 analog outputs), 1632 (36-channel, 32 analog outputs)
• Dolby Atmos: up to 34 discrete channels, native decoding and upmix
• DTS:X Pro: up to 30.2
• Auro-3D: up to 13.1, with Auromatic upmixing

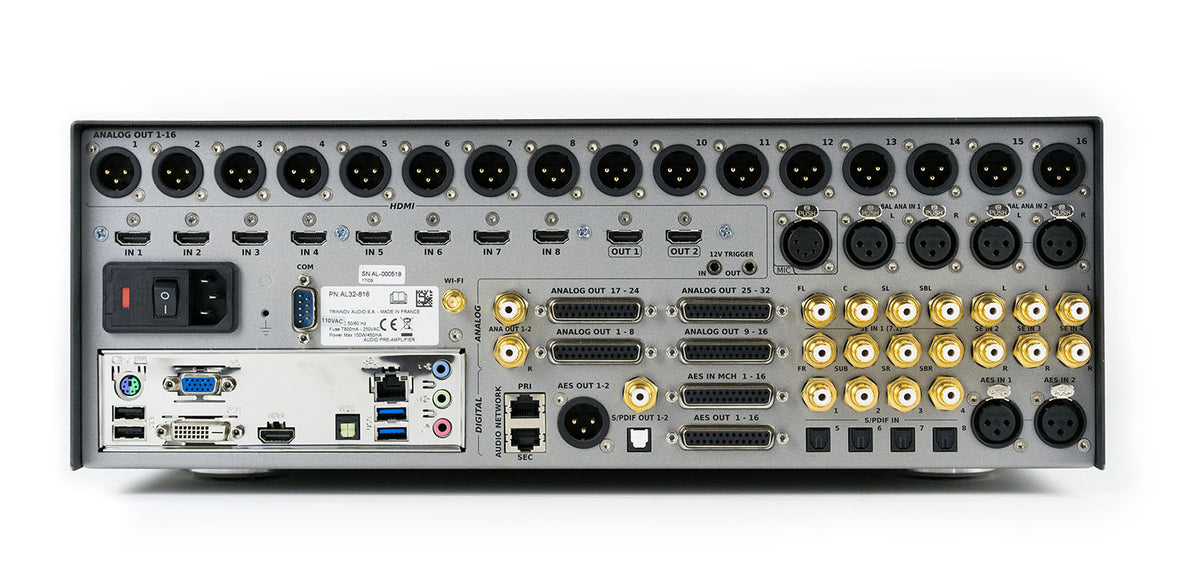

• HDMI: 8 inputs, 2 outputs (HDMI 2.1), eARC on output 1
• HDMI bandwidth: 40 Gbps, 4K 120Hz / 8K 60Hz
• HDR: HDR10, HDR10+, HLG, Dolby Vision
• Analog inputs: 2 balanced stereo XLR, 3 unbalanced stereo RCA, 1 unbalanced 7.1 RCA
• Digital inputs: 4 S/PDIF, 2 AES3 XLR
• Digital outputs: 2 S/PDIF, AES3 XLR and DB25 outputs
• Sample rate: up to 192 kHz (up to 24 channels)
• ADC: 24-bit / 96 kHz, 115 dB SNR (A-weighted)
• DAC: 24-bit / 192 kHz, 115 dB SNR (A-weighted)
• Streaming: Roon supported
• Dimensions: 17 7/16 x 6 1/2 x 17 9/16 in (442 x 165 x 445 mm), W x H x D
• Weight: 39.7 lbs (18 kg)
• Rack: 3.5U, rack ears and feet included
• Finish: black (standard), silver (optional)
• Warranty: 5 years, transferable
