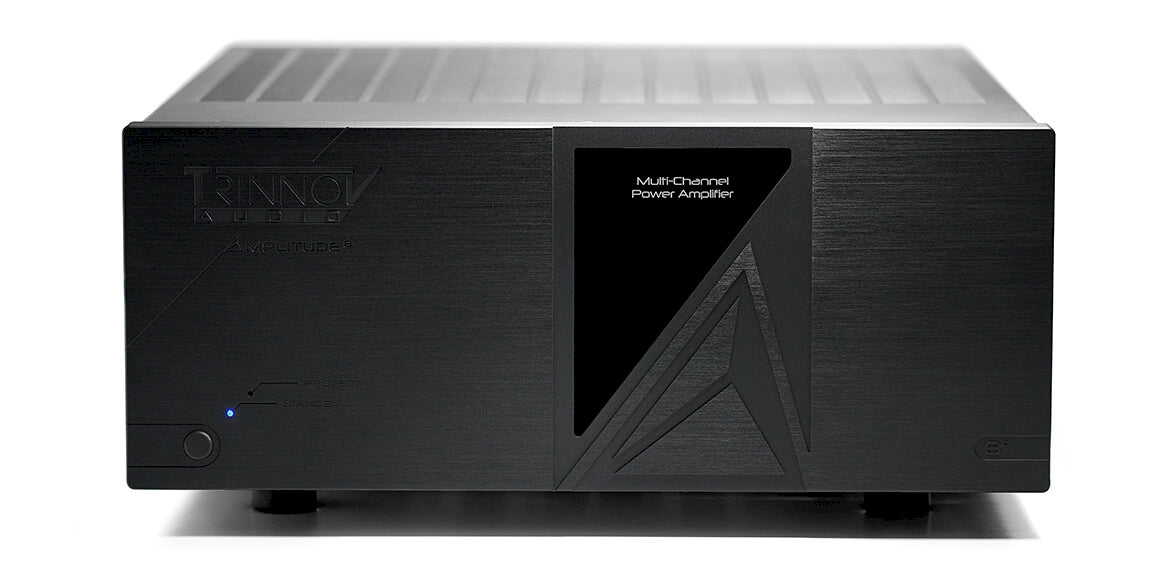

Trinnov Amplitude8 Power Amplifier

The Amplitude8 is an eight-channel power amplifier from Trinnov Audio, rated at 225W per channel into 8 ohms, 375W into 4 ohms and 500W into 2 ohms. It uses Class D Hypex Ncore NC1200 modules with linear power supplies, and each four-channel half has its own toroidal transformer.

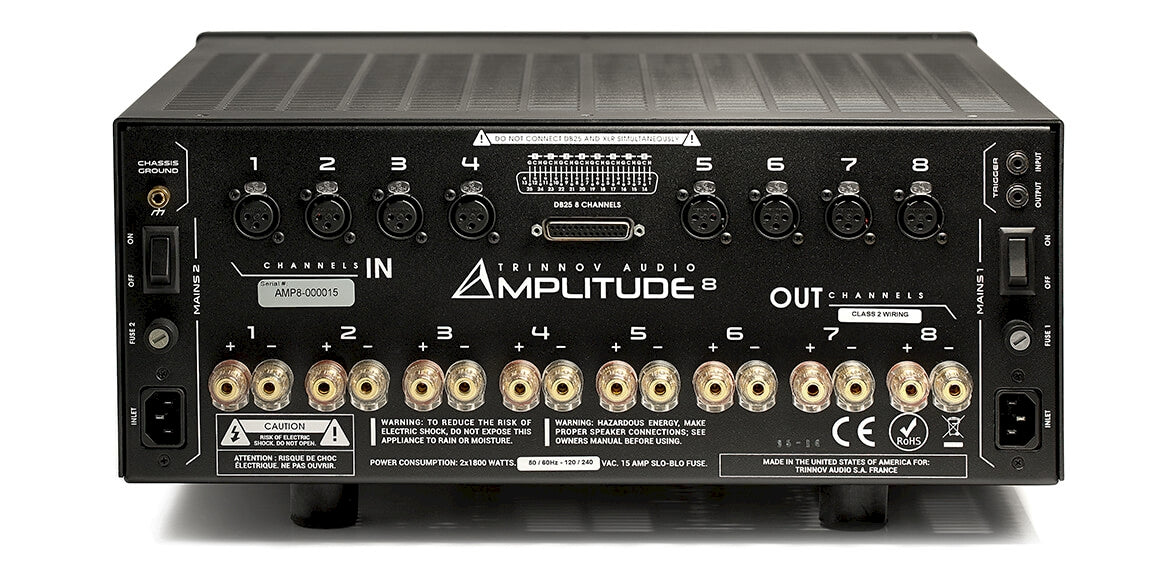

Inputs are one balanced XLR per channel, or a single D-Sub cable carrying all eight channels. It is designed to pair with Trinnov Altitude processors, matching input levels to the Altitude32 output. It is convection cooled with no internal fans and carries a 5 year transferable warranty.

Specifications

• Channels: 8
• Power: 225W per channel into 8 ohms, 375W into 4 ohms, 500W into 2 ohms (20 Hz to 20 kHz, 0.05% THD+N at rated 8 ohm power)
• Class: D, Hypex Ncore NC1200 modules, linear power supplies
• Inputs: 1 balanced XLR per channel, or 1 D-Sub carrying all 8 channels
• Input impedance: 47 kohms
• Outputs: 1 five-way binding post per channel
• Signal-to-noise ratio: 125 dB (A-weighted)
• Frequency response: +/-0.5 dB, 0 Hz to 20 kHz
• Damping factor: over 2000 from 20 Hz to 20 kHz
• Cooling: convection, no fans
• Trigger: 12V in and out
• Dimensions: 17 3/4 x 7 11/32 x 19 3/4 in (443 x 186.5 x 502 mm), W x H x D
• Weight: 105 lbs (47.5 kg)
• Warranty: 5 years, transferable
