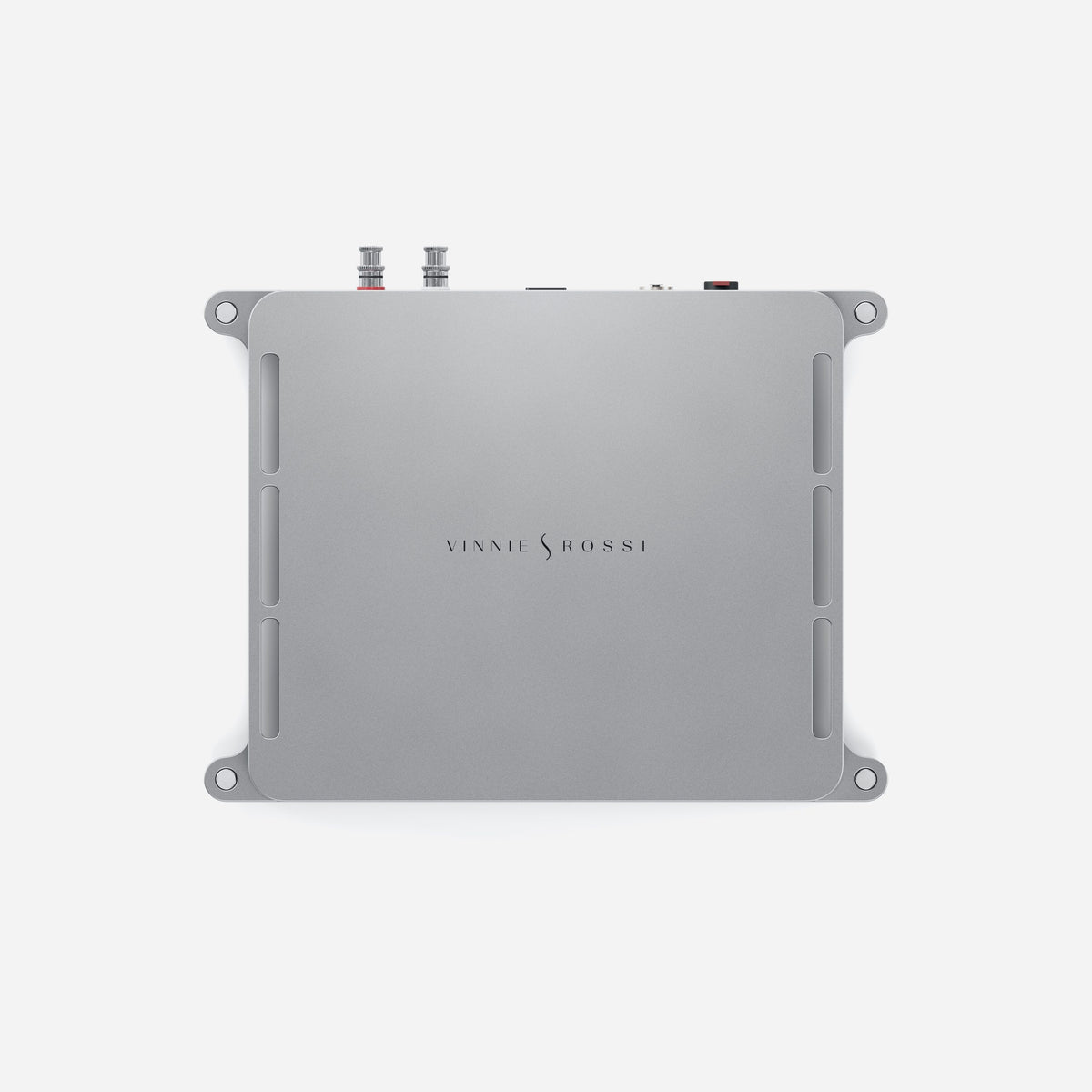

Vinnie Rossi Brama Monoblock Power Amplifier

The solid-state muscle half of the Brama separates, a matched pair of monoblocks meant to be driven by the Brama Preamplifier for a full-separates statement system. No tubes in this chassis; the 300B stage lives upstream in the preamp.

Sold and priced as a pair, not individually. A Nanuk travel case is available as an accessory.

Specifications

• Power: 300W RMS at 8 ohms, 600W at 4 ohms, 1200W at 2 ohms per monoblock; 2400W peak power supply
• Topology: Class AB, matched lateral MOSFETs per rail, no tube stage
• THD+N: less than 0.1%
• Frequency response: 5Hz-100kHz +/-0.5dB
• Signal-to-noise: greater than 100dB
• Gain: 22dB
• Input impedance: 20k ohms
• Inputs: one balanced XLR input per monoblock
• Outputs: WBT Nextgen speaker binding posts
• Other: Brama Link trigger
• Dimensions (each): 18.7 in x 16 in x 5.5 in (475 x 406 x 140 mm)
• Weight (each): 45 lbs (20.5 kg); ships at 80 lbs
• Finish: Silver
