Moon 310LP Phono Stage

Simaudio calls the 310LP its finest mid-priced phono preamplifier, an upgrade over its predecessor built around a large isolated power supply with its own toroidal transformer.

Four layer pure copper circuit boards, custom Moon electrolytic capacitors, and the same i2DCf filtering used higher in the line feed a symmetrical circuit design, with both balanced XLR and single-ended RCA outputs.

Specifications

• Gain: 40dB and 66dB settings
• Loading: user-adjustable resistance and capacitance
• EQ: RIAA/IEC selectable

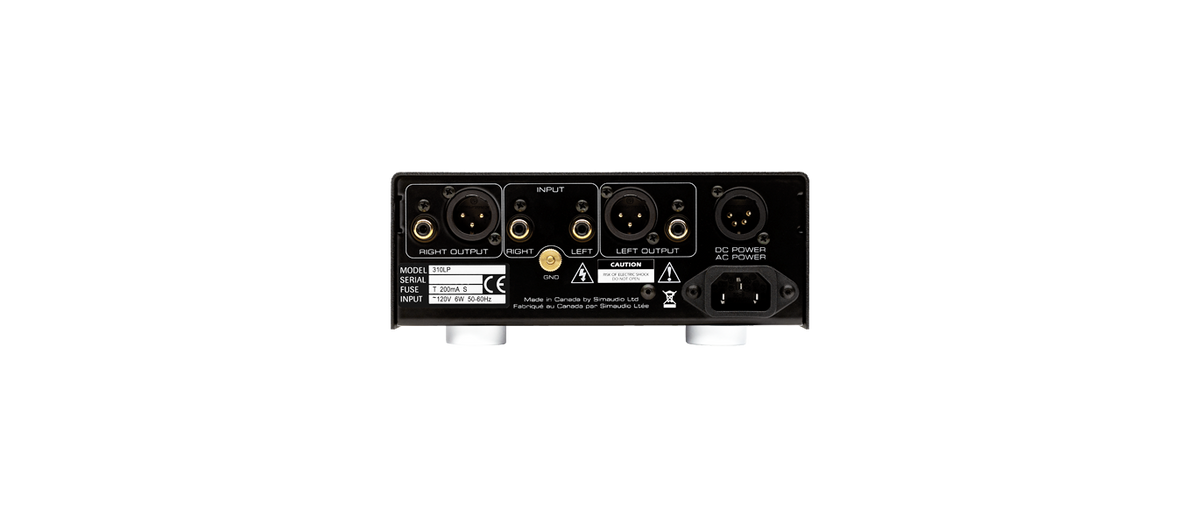

• Outputs: single-ended RCA and balanced XLR
• THD: 0.001%
• Signal-to-noise: 110dBr at 40dB gain, 88dBr at 66dB gain
• Frequency response: 20Hz-20kHz +/-0.5dB
• Output impedance: 50 ohms
• Dimensions: 7.0 in W x 3.0 in H x 11.0 in D (half-width)
• Weight: 7.0 lbs (3.1 kg)
